Place of Origin: | China Shandong |
Brand Name: | China Coal |
Certification: | CE, SGS, TUV, BV, ISO, MA |
Model Number: | YBT32-2 Axial Blower Fan |
Minimum Order Quantity: | 1 |
---|---|
Price: | Contact Us |
Packaging Details: | Standard Export Packaging |
Delivery Time: | Shipped in three days after payment |
Payment Terms: | TT, Paypal, Western Union |
Supply Ability: | 5000 |
Model: | YBT32-2 Axial Blower Fan | Rated Voltage (V): | 380 |
---|---|---|---|
Rated Current(A) : | 4.7 | The Motor Power (KW): | 2.2 |
Speed R/min: | 2840 | Grade of Impeller : | 2 |
Air Volume (m3/min): | 101-55 | All Flow Pressure (Pa): | 380-960 |
High Light: | ventilation fans,ventilating fan |
1) application for mining ,metal mountain.
2) volume: 55-425m3/min
3) power:2.2-30kw
4) total pressure:380-3500pa
5) axial fan

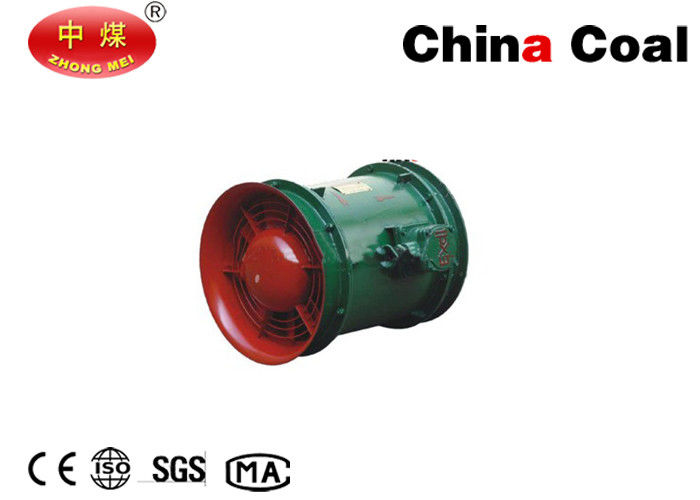

YBT Series Coal Mine Explosion-proof Axial Fan Feature:
This series fan is application for coal mine which has the system of AC 50Hz, voltage to 660v.for the local ventilation of coal mine. This fan also applies for metal mine, chemical mine, tunnel and other factory which need ventilator, delivery the air whose temperature is not higher than 40C,humidity is less than 97%(25C) and non-corrosion for gas and no destroyed to insulation.
Model |
Rated Voltage (V) |
Rated Current(A) |
The Motor Power (KW) |
Speed r/min |
Grade of Impeller |
Air Volume (m3/min) |
All Flow Pressure (Pa) |
YBT32-2 |
380 |
4.7 |
2.2 |
2840 |
2 |
101-55 |
380-960 |
YBT42-2 |
380/660 |
11.1/6.1 |
5.5 |
2900 |
2 |
180-90 |
800-1700 |
YBT52-2 |
380/660 |
21.8/12.5 |
11 |
2930 |
2 |
225-145 |
500-2400 |
YBT62-2 |
380/660 |
35.5/20.4 |
18.5 |
2930 |
2 |
300-195 |
520-2400 |
YBT62-2 |
380/660 |
42.2/24.3 |
22 |
2940 |
2 |
370-240 |
680-3200 |
YBT62-2 |
380/660 |
56.9/32.8 |
30 |
2950 |
2 |
425-250 |
800-3500 |
Model |
L |
H |
D1 |
D2 |
D3 |
Weight |
YBT32-2 |
490 |
510 |
300 |
340 |
370 |
61 |
YBT42-2 |
560 |
615 |
400 |
445 |
475 |
95 |
YBT52-2 |
560 |
720 |
500 |
540 |
570 |
135 |
YBT62-2 |
760 |
830 |
600 |
640 |
675 |
200 |
YBT62-2 |
800 |
830 |
600 |
640 |
675 |
245 |
