| Place of Origin: | China(mainland) |
| Brand Name: | RS Security |
| Certification: | ISO,FCC,SGS,RoHS,CE |
| Model Number: | RS 1006 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 5000usd |
| Packaging Details: | wooden box |
| Delivery Time: | 3-8workdays |
| Payment Terms: | TT |
| Supply Ability: | 3000pcs/month |

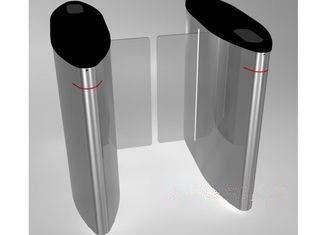

| Series: | Sliding Turnstile | Product Name: | Full High Sliding Turnstile |
|---|---|---|---|
| Model: | RS 1006 | Material: | 304 Stainless Steel |
| Brand: | RS Security | Size: | 1400*300*980mm |
| High Light: | retractable security barriers,retractable security gates |
||
| Dimensions | 1400*330*1000(mm) |
| Stainless thickness | standard 1.5mm, Can thicken |
| Turnstile components | cabinet, arm, movement, controller, encoder, electromagnetic brake, glass panel |
| Swing arm length | 300-600mm |
| Transmission arm angle | 180 degree |
| Swing direction | One-way or two-way |
| Power | Single movement 50W,double movement 100W |
| Operating Voltage | AC220 ±10% V/50 ±10% HZ |
| Motor | DC motor 40W/24V |
| Normal life | 500 million times |
| Gate opening time | 0.2 seconds |
| Input interface | dry contact signal or 12V level signal |
| Communication interface | RS485 or TCP / IP |
| Pass speed | 40 / min (normally open), 25-30 / min (Normally Closed) |
Technical Description:
►The translating brake has a rain/sun protection design and is suitable for outdoor use in the open air;
►The translating brake has a normally closed and normally open switching function, which is suitable for
the peak period of human flow and peacetime use;
►The panning brake system has a pass count function, which can see the number of people and the list by
controlling the computer at any time, and can query the punching data of the daily entry and exit personnel.
