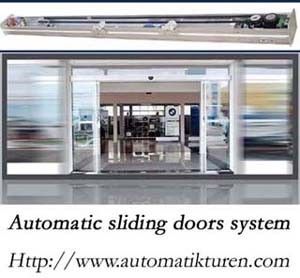

.Sliding method: single door leaf / double door leaf
.Weight of door: 180KgX 1 / 150Kg X 2
.Installation : surface installation
.Driving rail : 1400 3000 mm / 2800 5000 mm
.Width of door : 700 1500 mm / 700mm 1250X 2
.Consumption power : 70 W
.Electronic pressure: AC200 240V 50Hz
.Temperature : -20 50 .Motor : DC24V60W brushless
.Opening speed : 200 500mm /sec adjustable
.Closing speed : 200 500mm /sec adjustable
.Hold up time : 1 20sec adjustable
.Hand operation force :17.6N(1.8Kgf) 27.4N(2.8Kgf)
.Imput current 220V.stand by : 0.045A .0.09A
.Imput current 220V.working :0.93A .1.29A
.Operation : 1.Universality: it is suitable in office building,
shop front gate, bank, workshop, dining room, hotel, shopping
center, laboratory, hospital and so on . Maximumly guarante the
personnel`s safe and cargo`s passing.
2. Reliability: it is appropriate for varied manage operation
system.
3.Security: When the door is closing on, if meets problem: such as
the obstacle or the human body and likes, the door reverse
immediately , prevent from overcrowded event or damage phenomenon
occurrence, guarante the personnel to pass in and out
securitily.
4.Wise: The CPU could record recent obstacle position, in shutting
down, when meet obstacle, might reduce speed. Detecting ahead of
time guarantee security.
Energy-saving: The high quality design, , outstanding
sound-insulated, the heat insulation, the dustproof effect guarante
lowest energy- consumption.
5. Artistry: we will achieve your wanted result according to your
request such as faces , shapes, the outward appearance, and
likes:
6.Convenience: you can choose your own function such as open or
close, lock or unlock, the speed of door-open or door-close, varied
parametre, the needed time of door-open or door-close.
7.Tranquil: special lubricative reduced noise greatly with
specialized designed hoisting mechanisms hoop structure and device.
Motor device
1.The sliding door use Brushless DC motor :60W
2. Moment of force is strong and noise is low. When started.
3. With survey function of optics ruler,high efficiency close-route
control and with stable revolvin g torsion and speed.
4. Overload protective device prevent from being wear and obstarcle
.
Controller device:
1. With long serve life, controller Uses the advanced CPU chip
processing control system. Operating parameter be demonstrated in
digital.
2. Parameter is adjusted conveniently and nimberly.
3. can link to entrance manage system
Roller carriages
1. Advanced structural design , hoop always move on orbital .
2. Convenient altitude control
3. The guards equipment prevented the door from derailed .
4. According to your need, we make hoop of different material
.
5. With high intensity, even load, steady move , the hoisting
mechanisms can bear 180 kilogram .
Timing belt
The tooth timing belt is of high Intensity and Wearability.
Tension pulley device
Easy to adjust between loose and tight, it prevents the belt
vibration practically
