Place of Origin: | Guangdong |
Brand Name: | WUSUN |
Model Number: | 50" - 44" - 37.5" - 30" |
Air Volume: | 44500CMH |
---|---|
Mounting: | Wall Fan |
Application: | Industry or Agriculture or Animal Husbandry |
Motor rotation speed: | 1400r/min |
technology: | europe |
fan housing material: | galvanized steel or stainless steel |
Type: | Axial Flow Fan |
Electric Current Type: | AC |
Blade Material: | Stainless Steel |
noise: | 65 |
Business Type: | Manufacturer |
Power: | 1.5HP/1.1KW |
Speed: | 450r/min |
alternative mounting: | wall or window |
Voltage: | 380V/50HZ, 220V/60HZ, 415V/50HZ, 110/60HZ |
alternative blade material: | aluminium alloy or stainless steel or fiberglass reinforced plastic |
Fan Diameter: | 50inch/1270mm |
Size: | 1380*1380*400mm |
Category: | Frequency Meters |
Minimum Order Quantity: | 1 Piece/Pieces 1*20'GP container |
---|---|
Price: | FOB USD 150~220 / PieceGet Latest Price |
Packaging Details: | Packing: Carton, 1PC/Carton. Carton Size: 1400*1400*420mm Assemble: 30pcs/20'GP, 60pcs/40'GP, 68pcs/40'HQ Unassemble: 120pcs/20'GP, 200pcs/40'GP, 250pcs/40'HQ |
Delivery Time: | 15days |
Payment Terms: | L/C,T/T |
Supply Ability: | 8000 Piece/Pieces per Month 300pieces per day |
Characteristics of WUSUN Greenhouse Ventilation Equipment: Exhaust Fan
--Huge-air-volume,-Low-noise,-Good-energy-saving,-Little-fault
---Blade-Pulley-of-Light-weight,-High-intensity,-Quick-assemble,-Anti-corrision
---Motor-of-380/220V,-50HZ,3-Phase,-IP-55,-E-Class
---Each-motor-is-individually-tested-for-100%-quality-control.
---the-shutter-can-prevent-dust-and-water-effectively.
---Every-fan-is-individually-checked-for-quality.
-

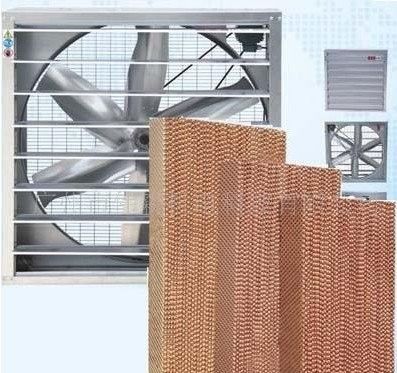

the principle of ventilation and cooling of WUSUN greenhouse ventilation-fan
The technology derived from Europe, standard and manufacturing process is wholy in accordance with the European CAD/CAM.-ventilation fan is installed in one side and evaporative cooling pad is installed in the other side ,then heat and exhaust inside will be taken away because of negative pressure, and fresh and filtered air will be pumped into through pad to make the air cool down by natural physical phenomenon----evaporation.
-
the combination ofventilation fan and evaporative cooling pad can sustain the factory temperature in less than 30 and make air change 80--90times per hour,no matter how high the original temperature is.
the combination of them:
1)WUSUN1380-ventilation fan with 6 square meter of evaporative cooling pad can meet 500 --550m³.
2)WUSUN1220 ventilation fan with 5 square meter of evaporative cooling pad can meet 450--500m³.
3)WUSUN1060-ventilation fan with 4 square meter of evaporative cooling pad can meet 400--450m³.
4)WUSUN900-ventilation fan with 3 square meter of evaporative cooling pad can meet 350--400m³.
-
-Quality guarantee:
The quality warranty for fan and pad is one year.Our fan can work for more than ten year in
-normal environment and it can work about 4 years in environment with acid and alkali.-
-
Application:
Our-ventilation fan can be used in almost all places which need ventilation and cooling.
1.industry: garment manufacturing factory, electronics, plastic, shoe, toy, hardware factory 2.Commerce: hall, supermarket, hotel, net bar, recreational place, guesthouse.
3.Public: hospital, station, gym, school
4.Animal husbandry: poultry house, pig, chicken, rabbit, cow barn
5.Agriculture: horticulture, greenhouse.
-
Fan Item |
greenhouse-fan |
1380 |
1220 |
1060 |
900 |
Size |
cm |
138*138*40 |
122*122*40 |
106*106*40 |
90*90*40 |
L*H*W |
|||||
Blade Dia. |
mm |
1270 |
1110 |
950 |
770 |
Air Volume |
m3/h |
44500 |
37000 |
32000 |
28000 |
Power |
HP/KW |
1.5/1.1 |
1.0/0.75 |
0.75/0.55 |
0.5/0.37 |
Voltage |
V |
415/380/220 |
415/380/220 |
415/380/220 |
415/380/220 |
Frequency |
HZ |
50/60 |
50/60 |
50/60 |
50/60 |
Propeller Rotation Speed |
r/min |
450 |
480 |
500 |
520 |
Noise |
dB |
65 |
63 |
60 |
55 |
Weight |
kg |
85 |
65 |
55 |
50 |
Carton Size |
cm |
140*140*42 |
124*124*42 |
108*108*42 |
92*92*42 |
Loading QTY Assembled |
20'/40'GP/40'HQ |
29/60/68 |
29/64/73 |
48/112/134 |
76/160/178 |
Loading QTY Unassembled |
20'/40'GP/40'HQ |
120/200/250 |
135/226/282- |
-156/260/325 |
184/303/383- |
-
-
