Place of Origin: | China Shandong |
Brand Name: | China Coal |
Certification: | CE, SGS, TUV, BV, ISO, MA |
Model Number: | SDS Jet Fans |
Minimum Order Quantity: | 1 |
---|---|
Price: | Contact Us |
Packaging Details: | Standard Export Packaging |
Delivery Time: | Shipped in three days after payment |
Payment Terms: | TT, Paypal, Western Union |
Supply Ability: | 5000 |
Model: | SDS | No.: | 40 |
---|---|---|---|
Motor Poles: | 2P | Rotating Speed R/min: | 2840 |
Blast Volume M3/min: | 3.2 | Speed M/s: | 25.5 |
Axial Thrust N: | 115 | Motor Power KW: | 2.2 |
High Light: | industrial ventilation equipment,ventilating fan |

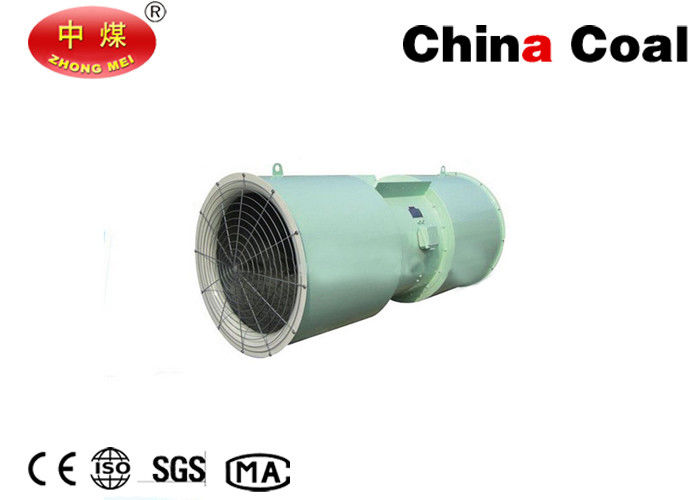

SDS Jet Fans Tunnel 2P Motor Poles Jet Flow Ventilation Fans for Tunnel
jet fan;tunnel ventilation fans; carpark ventilation fan; wall fan
Product Introduction
SDS jet flow fans is specially used for the tunnel lengthways ventilation system, the fans is installed hanging on the top roof of tunnel or both sides, which do not affect the traffic, no need to build exhaust way. Low cost building , is very ideal ventilation fans.
Main Parameter
Model |
Motor Poles |
Rotating Speed r/min |
Blade Angle |
blast volume M3/min |
Speed m/s |
Axial Thrust N |
Motor Power KW |
Thrust/ Power N/KW |
Noise dB |
40 |
2P |
2840 |
D1 |
3.2 |
25.5 |
115 |
2.2 |
52.3 |
73 |
50 |
2P |
2900 |
D1 |
6.5 |
33.2 |
285 |
7.5 |
38 |
75 |
56 |
2/4P |
2930/1400 |
D1 |
8.6/4.1 |
35.1/16.8 |
385/76 |
12.5/2.8 |
35/79.1 |
75/63 |
63 |
2P |
2930 |
D1 |
11.8 |
37.8 |
540 |
15 |
36 |
75 |
2930 |
D2 |
10.5 |
33.6 |
430 |
11 |
39.1 |
73 |
||
2900 |
D3 |
9.2 |
29.5 |
330 |
7.5 |
44 |
71 |
||
2900 |
D4 |
8.2 |
26.4 |
260 |
5.5 |
47.3 |
68 |
||
4P |
1430 |
D1 |
5.5 |
17.6 |
129 |
2.2 |
58.6 |
63 |
|
80 |
4/6P |
1460/960 |
D1 |
14.8/10 |
29.5/19.9 |
550/240 |
15.5/5.1 |
36.7/60.0 |
75/68 |
90 |
4P |
1470 |
D1 |
21.1 |
33.2 |
870 |
22 |
39.5 |
|
Feature Photo
