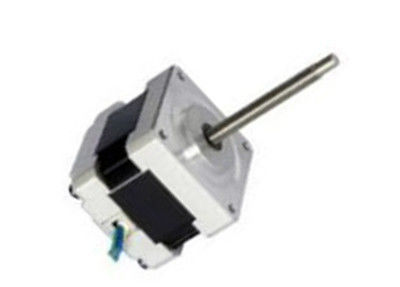

Nema 16 Hybrid Linear Stepper Motor

Nema 16 Hybrid Linear Stepper Motor

Quick Detail:

Nema 16, 39mm hybrid lead screw stepper motor linear stepper motor

Description:

• Type: Hybrid
• Certification: CCC,CE,ROHS
• Step Angle(degrees): 0.01
• Holding Torque: 0.21N.m
• Current / Phase: 0.4A
• linear stepper motor: linear stepper motor

Specifications:

• Voltage: 12V
• Step Angle(degrees): 0.01
•  Holding Torque: 0.21N.m
• Current / Phase: 0.4A
• Step Angle Accuracy:±5%(full step,no load)
•  Resistance Accuracy:±10%
• Inductance Accuracy:±20%
• Temperature Rise:80°CMax.(rated current,2 phase on)
• Ambient Temperature: -20°C-+50°C
• Insulation Resistance: 100MΩMin.500VDC
• Dielectric Strength:500VAC 1S
• Shaft Radial Play；0.06Max.(450 g-load)
• Shaft Axial Play; 0.08Max.(450 g-load)
• Certificate:CE/CCC/ROSH
• Protection class: IP 54

Applications:

This series of DC electric linear actuator is widely used in electric nursing bed, operation table, traction table, massage chairs, dental chair, electric wheelchair, electric sofa, electric booth, electric sunroof, ergonomic furniture for linear motion actuator occasions, the installation is very convenient, is widely applied in many fields of medical, fire, home furnishing, mechanical and electrical, chemical industry, sanitary ware, leisure etc..

Competitive Advantage:

linear stepper motor
1.nema08 nema11,nema14,nema16,nema17,nema23
2.High accuracy
3.Customized degisn
4.Smooth movement
