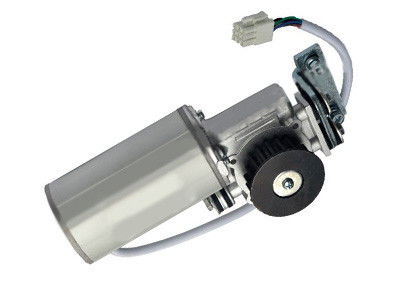

No Load Speed 2500RPM Small Electric BLDC Automatic Sliding Door Motor Torque 318mNm

No Load Speed 2500RPM Small Electric BLDC Automatic Sliding Door Motor Torque 318mNm

  • No Load Speed 2500RPM Small Electric BLDC Automatic Sliding Door Motor Torque 318mNm
No Load Speed 2500RPM Small Electric BLDC Automatic Sliding Door Motor Torque 318mNm
Product Details:
Place of Origin: Jiangxi, China
Brand Name: Ccoem
Certification: CE/CCC
Model Number: YX-4008-C5
Payment & Shipping Terms:
Minimum Order Quantity: 300pcs
Price: To be discussed
Packaging Details: standard export carton, CTN size:55*31*H30cm 50pcs/CTN G.W.:20Kgs
Delivery Time: 25-30days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description
Life Time: 3million Cycles,10years Rotate Direction: CW And CCW
No-load Noise: <50dB,L=50cm Power: 60W
Speed(RPM): 2500RPM Type: Brushless
Voltage: 24VDC
High Light:

garage door motors

,

sliding door motor

Small Electric BLDC Automatic Sliding Door Motor Torque 318mNm , No Load Speed 2500RPM



Quick Detail:



DC door open motor used for Automatic Sliding Door system, electric roller shutter door motor,24VDC 60W,2500RPM





Description:



1.Basic specification:DC24V,60W,2500RPM S1,B CLASS,IP20,IP40

2.Rated torque of bare motor:318mN.m,229mNm

3.No-load noise of whole motor:<50dB,L=50cm

4.VE:AC66V,1S,5mA

5.Insulation resistance:>20MΩ 500V,>20MΩ 500V

6.Life:2500H,4000H

7.Ambient request:RoHs

8.Gear Ratio:8.5,12.5,13





Specifications:



  • Certification: CCC, CE, RoHS, UL
  • Function: Control
  • Structure: Asynchronous Motor
  • Phase: Single-phase
  • Power: DC
  • Usage: Sliding Door
  • Protect Feature: IP40
  • Speed: 2500rpm
  • Shape: Round









Applications:



Widely used in interior automatic rolling door system





Competitive Advantage:



CE certified:

  • EC declaration of LVD conformity: low voltage, 2006/95/EC directive
  • Certificate number: CLZJ1205291170
  • EC declaration of EMC conformity: 2004/108/EC
  • Certificate number: CEZJ1205291171

CE, CCC compliant, QC under ISO9001:2008

Working temperature range -25C to + 60C

10years lifetime, without need for replacement

Silent working, Low noise, Easy installment, Reliable performance

This is the most popular style of automatic sliding door motor that most of the world-wide end users are choosing
