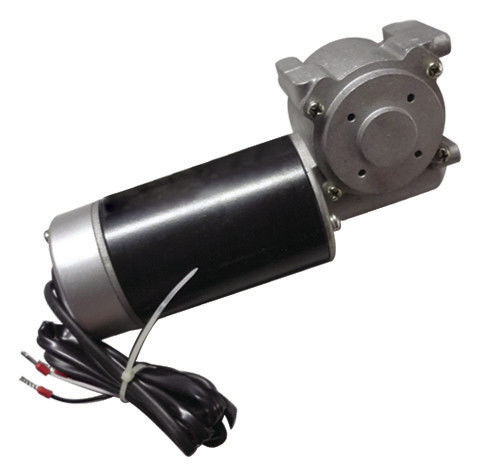

Noise-free 63.5mm Automatic Sliding Door Motor Permanent Magnet Long Lifetime

Noise-free 63.5mm Automatic Sliding Door Motor Permanent Magnet Long Lifetime

  • Noise-free 63.5mm Automatic Sliding Door Motor Permanent Magnet Long Lifetime
Noise-free 63.5mm Automatic Sliding Door Motor Permanent Magnet Long Lifetime
Product Details:
Place of Origin: Jiangxi, China
Brand Name: Ccoem
Certification: CE/CCC
Model Number: YX-4002-C2
Payment & Shipping Terms:
Minimum Order Quantity: 300pcs
Price: To be discussed
Packaging Details: standard export carton, CTN size:55*31*H30cm 50pcs/CTN G.W.:20Kgs
Delivery Time: 25-30days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description
Gear Material: Plastic Dupont 100P Construction: Permanent Magnet
Life Time: 3million Cycles,10years Commutation: Brushed
Power: 60W/100W Voltage: 24VDC
High Light:

garage door motors

,

sliding door motor

Noise-free 63.5mm Automatic Sliding Door Motor Permanent Magnet Long Lifetime



Quick Detail:



Interior Automatic Sliding Door Motor, Long Lifespan and Noise-free 24VDC 60W/100W





Description:



Permanent Magnet Brushed DC motor, worm gear box

Gear material: Plastic Dupont 100P

Aluminum Diecasting Gearbox

Motor housing: D63.5mm, Black coating

Rolled Steel Housing Construction

Encoder available, 20/40/100 pulse available

Various Output Shaft design

Metal or Plastic pulley available





Specifications:



  • Voltage: 24V
  • Power: 60W/100W
  • Unload speed: 245rpm (0.7A)
  • On-load speed: 210rpm (2.5A)
  • Stall torque: 12Nm (16A)
  • Rotate direction: CW and CCW
  • Protection class: IP 44





Applications:



Widely used in interior automatic sliding door system





Competitive Advantage:



CE certified:

  • EC declaration of LVD conformity: low voltage, 2006/95/EC directive
  • Certificate number: CLZJ1205291170
  • EC declaration of EMC conformity: 2004/108/EC
  • Certificate number: CEZJ1205291171

CE, CCC compliant, QC under ISO9001:2008

Working temperature range -25℃to + 60℃

10years lifetime, without need for replacement

Silent working, Low noise, Easy installment, Reliable performance
