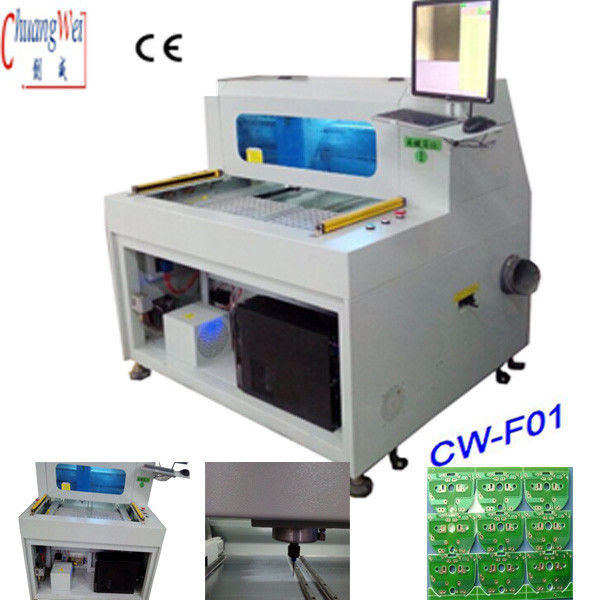

PCB Separator Router / PCB cutter Machine 2-Way Sliding Exchanger
Product Details:
Place of Origin: China
Brand Name: Chuangwei pcb separator
Certification: CE and GMC
Model Number: CW-F01
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 5-7days after receive the payment
Payment Terms: T/T, Western Union
Supply Ability: 80 sets/ year
Contact Now
Detailed Product Description
Height Offset: 60-110mm Positioning Repeatability: 0.001mm
Axis Working Area(max): 680mm*360mm*50mm Spindle: 50000rpm/min
Protect: Self/wind Cooling Name: Pcb Router
High Light:

pcb depaneling machine

,

pcb cutting machine



PCB Depaneling For Computer  Industry with 0.001mm Axis Precision



Hardware


SPINDLE    Morning Star spindle and inverter
CCD : Sony 520 line industrial cameras
LENS : Computar  EX2C
Screw : TBI Precision ground ball screw imports
Guide : HIWIN widening Imported linear guide rail
MOTOR : JiaBao LCF Series
I/O CONTRONL CARD :  HFC  PCI-9074
DRIVER CONTRONL CARD : HFC  PCI-9074
I/O CARD : PCI-9074-64pcs/-38pcs
Static cleanup : STATIC-ST401A Series
Computer : RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G)
Machine interface :  AOC LCD17",Logitech mouse



software


Control system : Windows XP Professional  (Service3,v.3244)
Operation GUI : Chinese Windows XP
Program edit : Inline
Vision system : CCD AOTU offset

Control system : F 1.0.2 version



Performance Parameters



Overall
Dimensions(W*D*H) : 1220mm*1450mm*1420mm
Weight : 550KG
Height offset : 60~110mm
Manipulator
Motor type : JiaBao series
Positioning repeatability : 0.001mm
Axis working area(max) : 680mm*360mm*50mm
Work station
PCB fixation : standard,specialization
PCB loading/unloading : manual
PCB size (max) : 322mm*322mm
PCB thick (max)    : 5mm
Fixturing
Rigidity fixturing : standard
Fixturing fixation : machinery
Spindle Motor
Power : 400W
Spindle : 50000rpm/min
Protect : self/wind cooling
Change cutter : Specialization
Routing capability
Cutting speed(max.) : 100mm/s
Driving speed(max.) : 3000mm/s
Precision of cutting :0.01mm
Vacuum System
Vacuum power:2.2KW AC 380V
Vacuum    plumb
Utilities
Power : 2.2KW AC380V
Air supply : 2~5KG/cm2



Programming


Program edit :Inline
Function edit : Line,arc,circula , U-curve
Program storage :    HDD
Vision system :    SONE  colour CCD
milling cutter offset : AUTO
Vacuum setup : AUTO
Operation Monitors
Iindicator : Iindicator Machine state
tool check : Automatic detection tool life , the use of time testing
Motor protect : Have overheating, overload , low voltage protection function
motor over loading check : Have Overload, the line is normal, low voltage protection function
Tool usable time : Automatic detection tool life ,
Data statistic : Separate board model , separating count , diverse counting methods
Error record : Software automatically records all alarms memory of machines
III. Accuracy
Axis precision : 0.001mm
Cutting precision : 0.1mm
IV. Safety
Working area protect : With four sealed protection
Door sensor: Front and rear safety door micro-switch sensor (optional)
Exigency stop button



 3.Function  Description



1) X10 zoom-in image makes programming easier&increase the accuracy of point setting



PCB Separator Router / PCB cutter Machine 2-Way Sliding Exchanger 0



2) Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better productivity.



PCB Separator Router / PCB cutter Machine 2-Way Sliding Exchanger 1





3) AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting

PCB Separator Router / PCB cutter Machine 2-Way Sliding Exchanger 2

4) Routng bit automatically lift and shift to next programmed point then cutting to extend the life time of routing bit

5) Safety door industry design



PCB Separator Router / PCB cutter Machine 2-Way Sliding Exchanger 3



6) CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting


PCB Separator Router / PCB cutter Machine 2-Way Sliding Exchanger 4



4. Application



PCB Separator Router / PCB cutter Machine 2-Way Sliding Exchanger 5

drill

 PCB Separator Router / PCB cutter Machine 2-Way Sliding Exchanger 6
