PLC Control IEC Test Equipment Microwave Oven Door Endurance Tester
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: MDE-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 15 set per month
Contact Now
Detailed Product Description
High Light:

iec tester

,

electrical safety test equipment

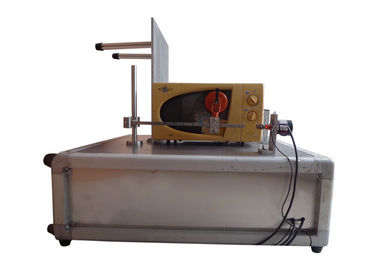

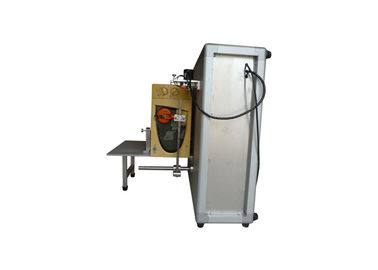

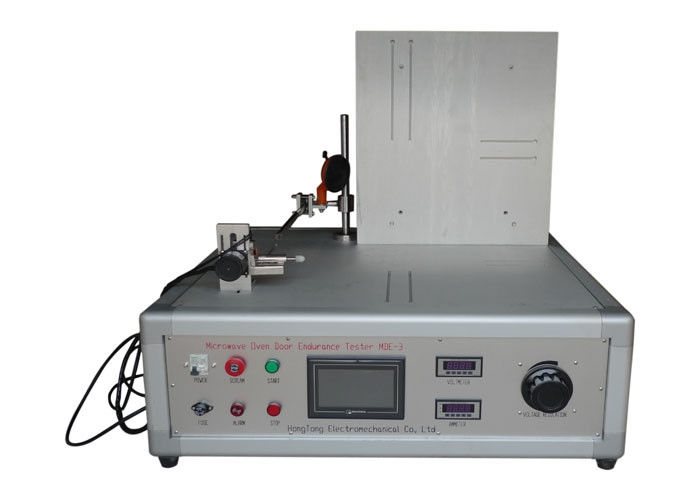

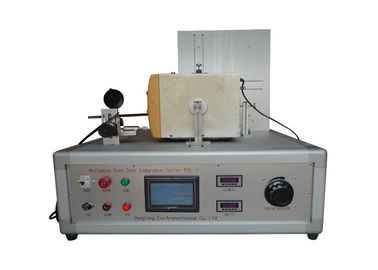

Microwave Oven Door Endurance Tester


Product information:

The microwave oven door endurance tester is designed and manufactured according to IEC60335-2-25. It is a dedicated tester which is used to inspect the wear resistance of the microwave door system, including the structure of the hinge, microwave seals and other related components that during the process of using.
The device uses advanced PLC control system and humanized touch screen operator interface, It is widely applicable to test vertical and horizontal door opening microwave oven. The test equipment is easy to operate, durable and practical.
It is equipped with full stainless steel manipulator, vacuum sucker structure and standard configuration TFT true color liquid crystal touch screen. The rotation angle and the speed of door opening/closing are adjustable. Thereby it can truly simulate the person’s hand to open and close the microwave oven door and other similar equipment. Thus achieve the intelligentized control method.

Power outlet has the function of detection which can judge whether the specimen is working with conducting. When doing the load test, if the specimen is not conducting during testing, the equipment will automatically stop working. At that time, the counter will record the test times and the alarm sounds. This function can be opened or closed according to the actual need.




Technical parameters:


Control mode

PLC control

Display mode

True color liquid crystal display(standard configuration of 7 inch display
control touch screen)

Holder construction

Top grade aluminium alloy sections

Driver

Stepper motor

Test station

Single (vertical and horizontal opening are switchable)

Working power supply

AC 220V 50HZ

Working power supply

Touch screen settings,0-99999s adjustable, it will automatic stop when
reach the number of times

Output power

2000W

Open/close time

Touch screen settings ,0-9999S adjustable

Open/close speed

Touch screen settings, adjustable

Opening door angle

Touch screen settings ,0-180° adjustable

Station

One working station ( left opening door or swing-up door )

Opening door lock

Eccentric gear machine structure automatically open  or lock the door

Size

1000*1000*800mm

Load

Equipped with power socket of 10A,for the specimen work under 2000W

Conforming to standard

  IEC60335-2-25 clause 18
