| Place of Origin: | Guangdong China |
| Brand Name: | Caterly |
| Certification: | CE,ISO9001,SGS,CQC |
| Model Number: | F-150W |
| Minimum Order Quantity: | 10 Sets |
|---|---|
| Price: | USD 225/Set to USD400/Set |
| Packaging Details: | Bubble bag and cardboard boxes and wooden case |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 2000Set per month |
| Type: | Sliding | Place Of Origin: | Guangdong China (Mainland) |
|---|---|---|---|
| Brand Name: | Caterly | SurfFace Finishing: | Finished |
| Material: | Aluminum Alloy | Position: | Commercial |
| Door Material: | Glass | ||
| High Light: | exterior sliding doors,automated sliding door |
||

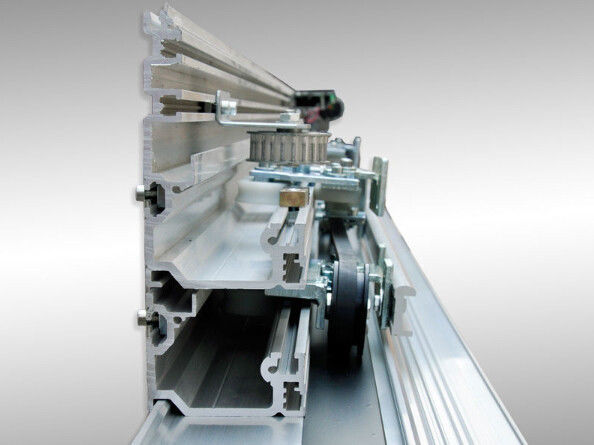

F-150W High-end Smart automatic Sliding Door operator 4200mm
Feature and Advantages
- Flexible system
- With CATERLY power drive:Dynamically controlled acceleration and deceleration curves for particularly powerful operation-and with emergency power backup in the form of a rechargeable battery pack
- Industrially prefabricated and tested MiniDriveUnit
- Integrated CATERLY connect and work bus system for easy integration of CATERLY connect and work sensors and actuators
- Commissioning via integrated display
- Can be combined with all customary door profiles
- Fully comprehensive range of accessories
- Reliable investment due to compliance with all relevant CE standards
Components
| 1. Controller | 9. Carrier |
| 2. Transformer | 10. Return Pully |
| 3. Motor | 11. Service cover holder |
| 4. Belt | 12. End stop |
| 5. Hanger sets | 13. Door bracket |
| 6. Cover | 14. Belt connection |
| 7. Track | 15. Belt tensioning device |
| 8. Battery Pack(optional) | 16. Glass clamping rail |
Optional equipment
| Electro-mechanical lock(bistable) |
| Manual release of electro-mechanical lock |
| Light barriers |
| Backup battery pack |
Technical Parameter
| Door parameters | F-150W | Basic module | |
| 1-panel sliding door | Modular design | ||
| - Clear passage width LW | 700-2000mm | Microprocessor-controlled function programs | |
| - Door panel weight, max. | 1X150kg | - Off | |
| 2- panel sliding door | - Automatic | ||
| - Clear passage width LW - | 800-3000mm | - Permanent open | |
| - Door panel weight, max. | 2X150kg | - Partial opening | |
| Technical data | Connection | ||
| Height | 125 | Adjustment of parameters via integral display&keypad | |
| Overall depth | 600mm | 24V output for external loads | |
| Opening & closing force,max | 89N | Readout error memory with error codes | |
| opening speed | 10-38cm/s | ||
| open time | 0-15sec. | ||
| Main voltage, frequency | 220V, 50/60 Hz | ||
| Power consumption | 70W |
Automatic door operator
1. European Design
2. Modular design
3. CE certificated
4. 2years warranty
| Packaging Details: | Carton or wooden packing or as per customer's request. |
|---|---|
| Delivery Detail: | 3 days after receiving customers' payment for smaple |
Our company are professional Automatic door manufacturer. we get specialized machine,skilled worker to make high quality and low price products.
You are welcomed to visit our factory and website to get more details.
Product Image :
