Place of Origin: | Jiangxi, China |
Brand Name: | Ccoem |
Certification: | CE/CCC |
Model Number: | YX-4009-F1 |
Minimum Order Quantity: | 300pcs |
---|---|
Price: | To be discussed |
Packaging Details: | Standard export carton or pallet,10pcs/carton, 25ctns/pallet |
Delivery Time: | 25-30days |
Payment Terms: | T/T,L/C,Western Union |
Supply Ability: | 50,000pcs/month |
High Light: | automatic door system,automatic door operator |
---|

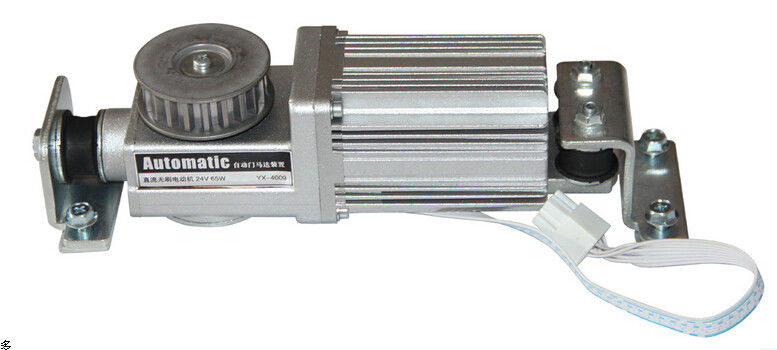

Yellow coating Aluminium pulley Door opener motorr 24VDC 65W 4200RPM
Description:
1.10 years experience
2.ISO900, CE Certificated
2.Great flexibility & OEM capacity
4.Silent working
5.Comtetitive Price
Permanent Magnet Brushed DC motor, worm gear box
Gear material: Aluminum Diecasting Gearbox
Motor housing: D63.5mm, Black coating or Zincification available
Rolled Steel Housing Construction
Various Output Shaft design
Metal or Plastic pulley available
Permanent magnet motor
Worm gearbox
Permanent lubrication by grease
Working temperature range -25C to + 60C
Encoder controlled
Specifications:
Code |
Voltage |
Power |
torque |
Speed |
Protection class |
Weight |
Encoder |
Life time |
V |
W |
Nm |
Rpm |
IP |
KG |
|||
4004 |
24V |
65 |
16 |
4200 |
IP44 |
3.0 |
Yes |
3million cycles,10year |
Applications:
Permanent Magnet Brushed DC 24VDC, 50W DC motor, and is encoder controller. It offers strong permissible torque and instantaneous reversing characteristics with low noise, long life and reliable performance. It features permanent magnet motor utilizing neodymium iron boron alloy, which is permanently mounted on the stator. As a result, the motor dispels its heat more evenly, preventing overhearing and increasing efficiency.
The motor also features a small commuter, resulting in lower wear on the motor’s brushes. As a result, the brushes on the motor, if used for automatic doors, can last for over 10 years, without need for replacement.
The motor also can used a hardened alloy steel worm with phosphor bronze gear, which provides much larger torque than traditional plastic gears.
