Place of Origin: | Zhejiang, China |
Brand Name: | CIROLLA |
Certification: | CE/CCC/ SGS |
Model Number: | 410 |
Minimum Order Quantity: | 300PCS |
---|---|
Price: | Negotiation |
Packaging Details: | Standard export carton or pallet,10pcs/carton, weight 2.5kg |
Delivery Time: | 25-30days |
Payment Terms: | T/T,L/C, Western Union |
Supply Ability: | 50,000pcs/month |
Door: | Automatic Swing Door | Type: | Swing |
---|---|---|---|
Color: | Silver | Opening Type: | With Remote Control |
Surface Finishing: | Finished | Function: | Automatic Swing Door Operator |
Door Style: | Single-leaf/Double-leaf | ||
High Light: | automatic swing door opener,swing gate operator |

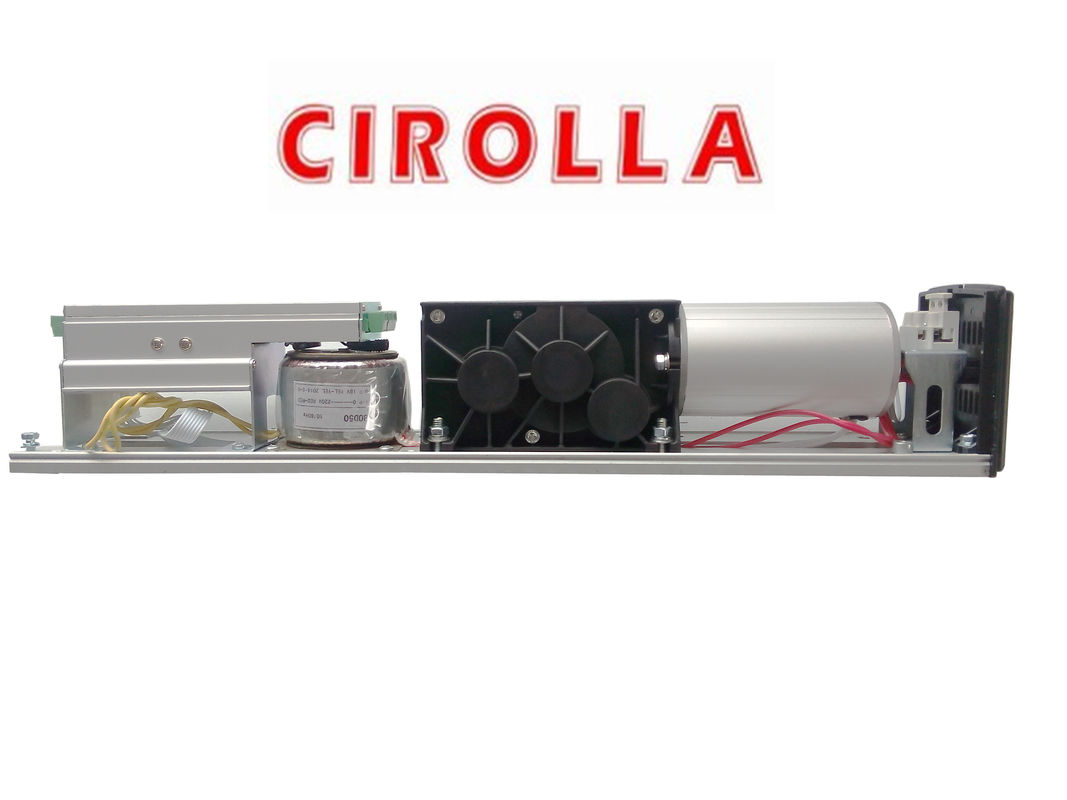

Stainless Automatic Swing Door Opener Motor Brushless With Remote Control
Description:
A swing-door operator (or swing-door opener or automatic swing-door operator) is a device that operates a swing door for pedestrian use. It opens or helps open the door automatically, waits, then closes it.
Operators are powered by an electric motor. They differ in how they use the motor's energy to open the door.A door operator may use sensors to prevent the door from coming into contact with a user.
Applications:
Swing Auto-Door opener can be opened and closed automatically in any swing doors; it is widely used in Hotel, Hospital, Shopping Mall, Bank, Commercial office building, etc.
Specifications:
Swing door opener:
Door style |
Single-leaf/Double-leaf |
Door weight |
1x150kgs,2x120kgs |
Open angle |
90º-110º |
Door width |
Max.1300mm |
Door leaf weight |
Max.200/180/150kg |
Opening time |
3~9s(adjustable) |
Closing time |
3~9s(adjustable) |
Hold open time |
1-10s(adjustable) |
Power supply |
AC90V-AC260V 50Hz-60Hz |
Brushless motor |
24VDC 75W |
Operation noise |
≤ 55dB |
Ambient temperature |
-20°C~50°C |
Motor Specs:
Type |
Brushless |
Voltage |
24VDC |
Power |
75W |
No-load speed |
19rpm |
On-Load speed |
17rpm |
Noise level |
≤40dB |
Gear Ratio |
1:119 |
Protection class |
IP44 |
Weight |
2.5kg |
Lifetime |
3million cycles,10years |
Application |
Automatic Swing door |
Competitive Advantage:
Swing Auto-Door opener can be opened and closed automatically in any swing doors. Features:
1. Driving devices works with low noise,reliable performance,safety and brings living and working environment more convenience.
2. In case of meeting obstacles or personnel during operation,the door will be opened to reverse direction.
3. Innovation in mechanical design offers fast and effective installation.
4. With sensors,access control,safety beam protection interfaces,configurate electric lock,power output interface.
5. Wireless remote open mode is optional.When necessary,please to configurate backup power for security requirements.
6. It can realize the interlock function between door and door.
