Place of Origin: | China |
Brand Name: | RISHBIN |
Certification: | CE |
Model Number: | RH-CC-1312 |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Contact Us |
Packaging Details: | Standard packing |
Delivery Time: | 60 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 200 Sets Per Year |
Production Material: | Galvanized Steel | Material Thickness: | 1.0mm |
---|---|---|---|
Forming Speed: | 15 M/min | Shaft Diameter: | 60mm |
Run-out Table: | Roller Type | Color: | Blue Or Client's Demand |
High Light: | cold roll forming equipment,metal roll forming machines |
Galvanized Steel C Channel Cold Roll Forming Machine with Inline Pre Holes Punching
Main Specifications of C Channel Cold Roll Forming Machine
Item | Description |
Production Material | Galvanized steel |
Material Thickness | 1.0mm |
Delivering | 1 station for sheet metal delivering |
Forming Speed | 15 m/min |
Number of Stations | 14 stations |
Material of Punching Mould | SKD11 with heat treatment |
Roller Material | SCM4 with heat treatment and hard chrome-plated HRC60 |
Shaft Diameter | 60mm |
Shaft Material | S45C quenched and tempered after finishing treatment |
Shearing Blade Material | SKD11 with heat treatment (HRC60), hydraulic operated |
Power of Main Motor | 5.5 KW |
Power of Hydraulic Station | 3.5 KW |
Holes Punching | Inline pre holes punching |
Cutting | Post cutting with hydraulic driving |
Electronic Controlling System | Full-frequency PLC controlling system |
Run-out Table | Roller type |
Working Process
Coiler loading → inline hydraulic holes punching → feeding-in with adjustable rollers guiding (metal sheet is guided into the first forming station) → rolling & forming → hydraulic cutting → stacker running out
Structure of C Channel Cold Roll Forming Machine

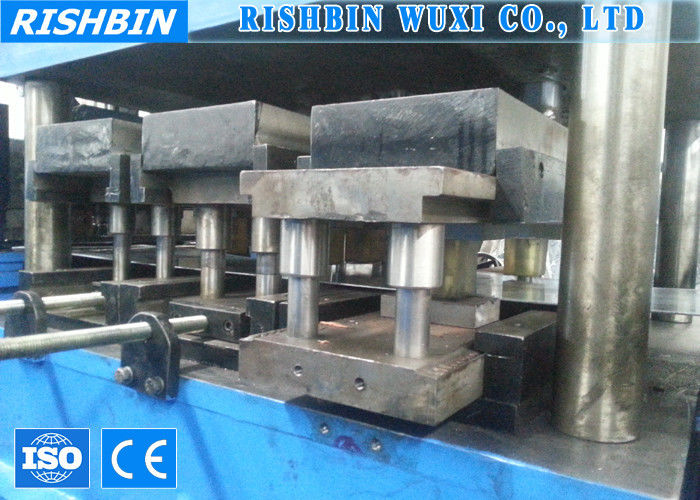

This roll forming machine consists of non-power uncoiler, driven transmission, forming rollers, mainframe (including guiding platform), inline hydraulic holes punching system, six sets of punching moulds for six different sets of holes, hydraulic cutting device, hydraulic station, electric controller and stacker.
Profile Drawings
Company Introduction
Rishbin was founded in 1999. With more than ten years' development, now it becomes a leading professional supplier in the field of roll forming machinery industry, and exports its quality production line to the markets all over the world.
we are one of the leading suppliers and manufacturer in china and have been supplying and making roll forming equipment for the metal building construction industry for a long time.
