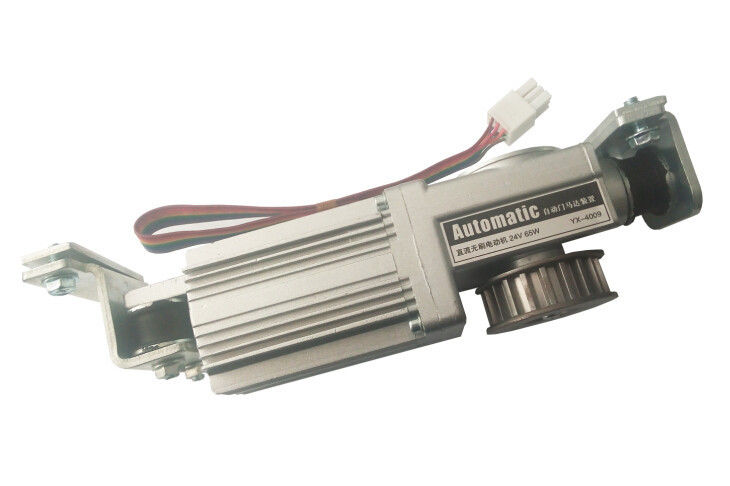

60W 24VDC Automatic Sliding Door Motor Gear Permanent Magnet With Encoder For Transmission

60W 24VDC Automatic Sliding Door Motor Gear Permanent Magnet With Encoder For Transmission

Quick Detail:

DC Rolling door Motor 24VDC, 60W with Encoder,10years lifetime,3millions cycles

Description:

Model Number: rolling door motor

Usage: transmission

Certification: CE,ROHS,CCC, CE, ROHS, UL

Type: Gear Motor

Construction: Permanent Magnet

Commutation: Brush

Speed(RPM): 1800-3000rpm

Continuous Current(A): 0.3-4.0A

Output Power: 60W

Voltage(V): 24,90V

Function: Driving

Structure: Synchronous Motor

Phase: Three Phase

Speed: from 5rpm to 4000rpm

Shape: square box

This product  adopted PMDC brush motor as the main part of rotor.It can be matched with computer system of control.It can realise self-supervise through matching with computer,and you can set the best working model.

Such asspeed ,impetus,resistant power and so on.It has characters of low noise,small volume,light,long lift and wide use.Meanwhile,it can meet the customers'request of update.

Specifications:

1.Basic specification:DC24V,60W,2500RPM S1,B CLASS,IP20,IP40

2.Rated torque of bare motor:318mN.m,229mNm

3.No-load noise of whole motor:<50dB,L=50cm

4.VE:AC66V,1S,5mA

5.Insulation resistance:>20MΩ 500V,>20MΩ 500V

6.Life:2500H,4000H

7.Ambient request:RoHs

8.Gear Ratio:8.5,12.5,13

Applications:

Widely used in interior automatic sliding door system

Competitive Advantage:

CE, CCC compliant, QC under ISO9001:2008

Working temperature range -25C to + 60C

3 million cycles, 10years lifetime, without need for replacement

High efficency,Silent working, Low noise,

Easy installment, Reliable performance
