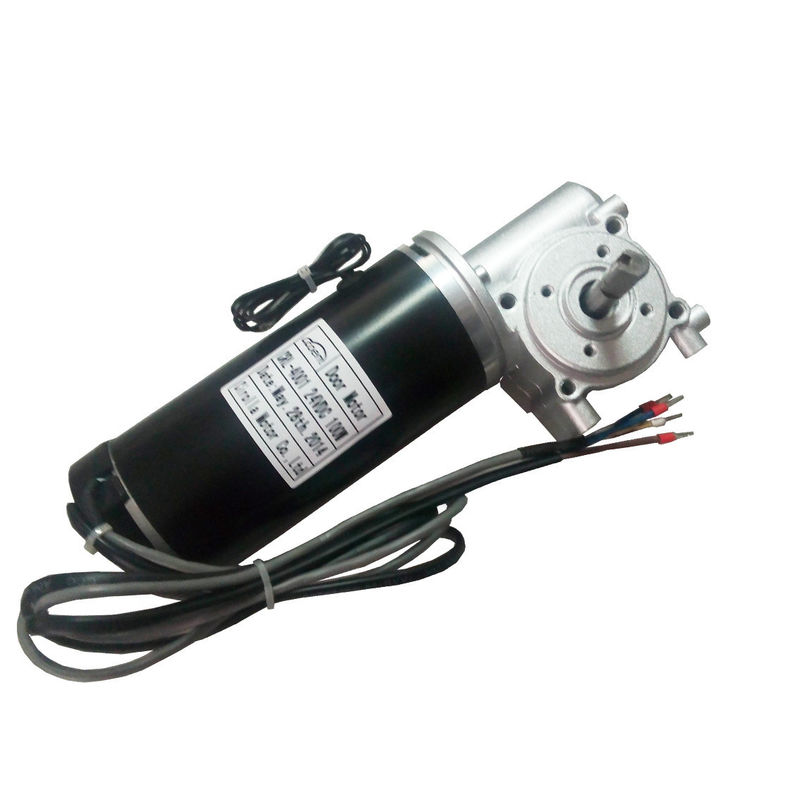

High Efficency BLDC Brushless DC Motor Automatic Sliding Door With brake and encoder

High Efficency BLDC Brushless DC Motor Automatic Sliding Door With brake and encoder

Quick Detail:

Automatic sliding door motor with transformer, Brushless DC Motor 24VDC, 65W with Encoder,10years lifetime,3millions cycles

Description:

Brushless DC motor

Gear material: Strengthened plastics or Bronze

Aluminum Diecasting Gearbox

Motor housing: D63mm, Zincification available

Encoder available

Various Output Shaft extension

Metal or Plastic pulley available

Lifetime: 3 million cycles, 10 years

Specifications:

• HS code: 8501310000
• Voltage: 24VDC
• Power: 65W
• speed: 4200rpm
• Rotate direction: CW and CCW
• Protection class: IP 44

Applications:

Widely used in interior automatic sliding door system

Competitive Advantage:

CE certified:

• EC declaration of LVD conformity: low voltage, 2006/95/EC directive
• Certificate number: CLZJ1205291170
• EC declaration of EMC conformity: 2004/108/EC
• Certificate number: CEZJ1205291171

CE, CCC compliant, QC under ISO9001:2008

Working temperature range -25C to + 60C

3 million cycles, 10years lifetime, without need for replacement

High efficency,Silent working, Low noise,

Easy installment, Reliable performance
