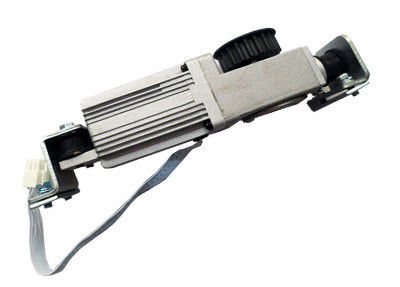

High Power 60mm Worm Gear Box Brushless DC Square Motor For Automatic Sliding Door motor

High Power 60mm Worm Gear Box Brushless DC Square Motor For Automatic Sliding Door motor

Quick Detail:

Brushless dc motor used for Automatic Sliding Door system, Long Lifetime and Noise-free,24VDC 65W,4200RPM, This is the most popular style of automatic sliding door motor that most of the world-wide end users are choosing

Description:

Permanent Magnet Brushless DC motor, worm gear box type

Gear material:Strengthened Plastic or Bronze

Aluminum Diecasting Gearbox

Al Diecasting motor body, D60mm

Encoder available

Various Output Shaft extension

Metal or Plastic pulley available

Specifications:

• HS code: 8501310000
• Voltage: 24V
• Power: 65W
• speed: 3200rpm
• Rotate direction: CW and CCW
• Protection class: IP 44
• Life time:3million cycles,10years

Applications:

Widely used in interior automatic sliding door system

Competitive Advantage:

CE certified:

• EC declaration of LVD conformity: low voltage, 2006/95/EC directive
• Certificate number: CLZJ1205291170
• EC declaration of EMC conformity: 2004/108/EC
• Certificate number: CEZJ1205291171

CE, CCC compliant, QC under ISO9001:2008

Working temperature range -25C to + 60C

10years lifetime, without need for replacement

Silent working, Low noise, Easy installment, Reliable performance

This is the most popular style of automatic sliding door motor that most of the world-wide end users are choosing
