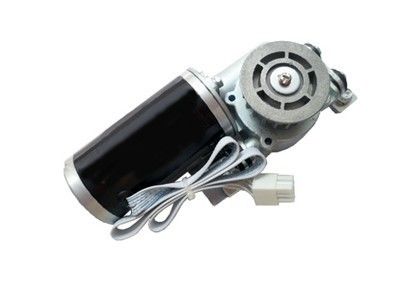

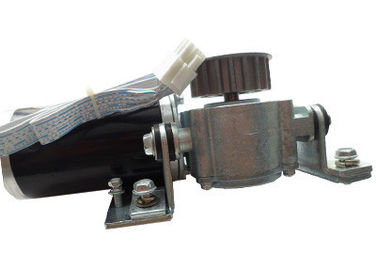

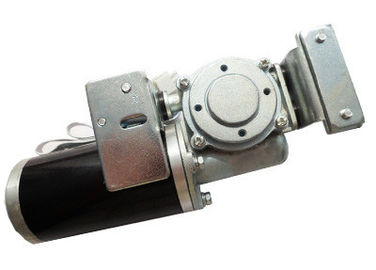

60.5mm Brush Less DC Automatic Sliding Door Motor 24VDC Black Coating Gear Ratio 1:15

60.5mm Brush Less DC Automatic Sliding Door Motor 24VDC Black Coating , Gear Ratio 1:15

Quick Detail:

Brushless Automatic Sliding Door Motor, Long Lifetime and Noise-free 24VDC 65W,4200RPM

Description:

Permanent Magnet Brushless DC motor, worm gear box type

Gear material: Strengthened Plastic or Bronze

Aluminum Diecasting Gearbox

Motor housing: D60.5mm, Black coating

Rolled Steel Housing Construction

Encoder available

Various Output Shaft extension

Metal or Plastic pulley available

Specifications:

• HS code: 8501310000
• Voltage: 24VDC
• Power: 65W
•  speed: 4200rpm
• Gear Ratio: 1:15
• Rotate direction: CW and CCW
• Protection class: IP 44
• Life time:3million cycles,10years

Applications:

Widely used in interior automatic sliding door system

Competitive Advantage:

CE certified:

• EC declaration of LVD conformity: low voltage, 2006/95/EC directive
• Certificate number: CLZJ1205291170
• EC declaration of EMC conformity: 2004/108/EC
• Certificate number: CEZJ1205291171

CE, CCC compliant, QC under ISO9001:2008

Working temperature range -25C to + 60C

10years lifetime, without need for replacement

Silent working, Low noise, Easy installment, Reliable performance
