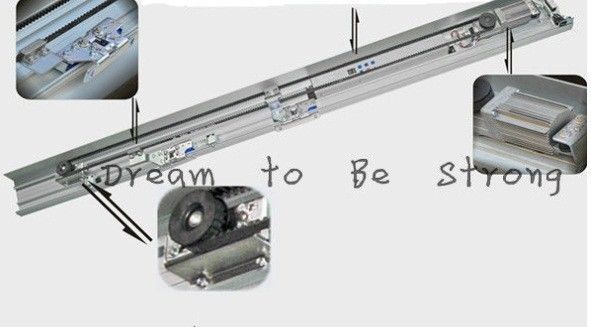

Office internal sliding doors , Auto sliding Door operator Bea infrared motion sensor

Office internal sliding doors , Auto sliding Door operator Bea infrared motion sensor

  • Office internal sliding doors , Auto sliding Door operator Bea infrared motion sensor
Office internal sliding doors , Auto sliding Door operator Bea infrared motion sensor
Product Details:
Place of Origin: Guangdong China
Brand Name: Caterly
Certification: CE,ISO9001,SGS,CQC
Model Number: F-150W
Payment & Shipping Terms:
Minimum Order Quantity: 10 Sets
Price: USD 225/Set to USD500/Set
Packaging Details: Air bubble film+wood crates; carton+plywood; accept customized package .
Delivery Time: 3-8 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2000Set per month
Contact Now
Detailed Product Description
Motor: 24V,60W, 3000r/min,bruthless Radar: Infrared Sensor
Options:: Key Switch,lock,photocell Track Lenght: 4.2m
Weight: 22kg Door Panels: Frame Door Or Glass Door
Safety: Safety Return Manufacturer: Yes
Type: Automatic Door Operators
High Light:

electric sliding doors

,

exterior sliding doors

Office door opening device  Auto sliding Door operator  Bea infrared motion sensor

Packaging & Delivery

Packaging Detail: Foam inside, Carton outside, Euro Pallet
Delivery Detail: Promise in 2 days

Specifications

automatic sliding doors operator
a Entrance door
b Automatic door parts
c Automatic door factory
d Slimline profile





Intelligence,



a. controlled by the microcomputer digital chips ,giving the control unit multiple programmable modes including provision to interface with builidng security system, monitoring the doors position status,built-in UPS,etc

b. Wide operational parameter setting like speed,hold-on time,power,etc





Safety,





a. Active 8 combination sensor to activate door and prevent from clamping

b. Auto-reversing when confronting with obstacle.

c. UPS when power fails to provide escaping passage

d. The microcontroller also provide the interface for alarming system ,safety system ,etc

e. Fuse protection at 1A, 250V

f. Protection when working temperature is over setting value





Reliability,



a. Imported Microchips MCU to control the door working. 24V,60W, DC bruthless motor have big power to hold 150kg panels, work a long time and noise is 50db to 60db.

b. With the help of advanced synchronous belt and perfect design of power supply circuit , the door moves very stably.

c. Track and anti-derail rubber on the hanger roller to protect from derailing. Our this techniques is veyr mature. and can promise it can't derail.





Specification,



Door model Single Bi-Parting
Door width 700-1300mm 600mm-1250mmn
Door weight 150kg 150kg x 2
Opening speed 15cm-50cm/s 15cm-45cm/s
Clsosing speed 10cm-45cm/s 10cm-43cm/s
Hold on time: 0-9s
Motor brushless 24 volt DC,60W ,high torque 3000r/min
Microcontroller PLC techniques and 16 bit MCU, Visialbe adjustment screen
Power supply 80V-250V,60Hz/50Hz
Profile size 4200mm(L)x 150mm(H)x 110mm(W)







Components



Retro-fit kit

1

Motor & Gearbox

1pcs

China-made 24V,55W ,DC bruthless motor

2

Microcontroller

1pc

8 bit MICROCHIP chip

3

Radar

2pcs

Bea combination sensor

4

Learning code remote controller

1set

Hold-open,lock,exit only, half-open

5

Carriage

4pcs

2 running wheel

6

Tooth belt

1pc

7m, fiberglass tensile elements, nylon surface

7

Belt clamp

2pcs



8

Idle pulley

1pc

Aluminum alloy

9

Stopper

2pcs

Aluminum alloy

10

Connection termial

1pc

For 220V power ,and outside sensor connection

Profile

1

Track

1pc

3mm thickenss, Anodize, height 125mm, depth 100mm,length 4200mm

2

Cover

1pc

170mm height,anodized

Options

1







2

Electro-mechanical lock

1set

12V,time delay

3

Emergency battery

1set

12V,7Ah,contiunously working half an hours

4

Control panels

1set

LCD display, key swtich,5 program adjust

5

Floor guide

2pcs

For frame and frameless door

6

Glass clamp

2pcs

1m length, fit to 10mm,12mm glass



Sectional Drawing

Office internal sliding doors , Auto sliding Door operator Bea infrared motion sensor 0





Bea Safety and Activation Combination Sensor,



Office internal sliding doors , Auto sliding Door operator Bea infrared motion sensor 1



Factory,

Office internal sliding doors , Auto sliding Door operator Bea infrared motion sensor 2







...
