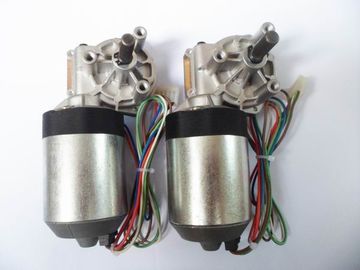

Gear motor for garage door system, sensor, high quality, low noise

Gear motor for garage door system, sensor, high quality, low noise

Description:

Permanent Magnet Brushed DC motor,Worm gear reduction type

Gear material: Plastic Dupont 100P or Bronze

Aluminum Diecasting Gearbox

Motor housing: D63mm, Zincification available

Stretching Housing Construction

Hall sensor available

Output Shaft: Dia 8mm,Flat

can be done according customer’s design

Specifications:

• HS code: 8501310000
• Voltage: 24VDC
• Power: 50W
• Unload speed: 50±5rpm, ≤0.7A
• On-load speed: 40±5rpm, ≤4.0A
• Full load torque: ≥10Nm
• Stall torque: 30Nm
• Rotate direction: CW and CCW
• Protection class: IP 44

Applications:

For lifting automatic garage door system

Competitive Advantage:

CE certified:

• EC declaration of LVD conformity: low voltage, 2006/95/EC directive
• Certificate number: CLZJ1205291170
• EC declaration of EMC conformity: 2004/108/EC
• Certificate number: CEZJ1205291171

CE, CCC compliant, QC under ISO9001:2008

Working temperature range -25℃ to + 40℃

10years lifetime, without need for replacement

Silent working, Low noise, Easy installment, Reliable performance
