| Place of Origin: | China Mainland |
| Certification: | CE, ISO9001:2008 |
| Model Number: | P3500-1W |
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 41.5X28X18cms,1pc/CTN |
| Delivery Time: | 25 days |
| Payment Terms: | T/T |
| Supply Ability: | 17000PCS / Month |
| High Light: | Portable utv winches,electrical DC winch |
||
|---|---|---|---|

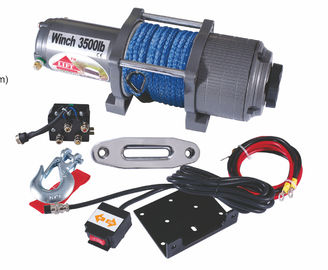

Planetary gear 3500 lb rope ATV Electric Winch / Winches
1) 3500lbs rope UTV winch
2) Free spooling clutch
3) Automatic braking action
4) Specially designed differential planetary gearing for heavy duty application
Specifications:
|
Rated line pull |
3500 lbs (1588 kgs) single line |
|
Motor |
Permanent magnet, 0.8kw/1.1hp 12v |
|
Gear reduction ratio |
128:1 |
|
Geartarain |
3-Stage Planetary |
|
Clutch(free spooling) |
cam activated |
|
Rope (Dia x L) |
Φ6mm*15mm) |
|
Drum size (Dia x L) |
Φ1.77"*3.19"(Φ45mm*81mm) |
|
Overall dimensions |
13.6"*4.6"*4.8"(345mm*118mm*121mm) |
|
Packing size |
41.5*30*28*18cm 1PC/CTN |
|
Weight |
N.W/G.W: 10kg/11kg |
|
Line Pull |
lb |
NO |
500 |
1000 |
1500 |
2000 |
2500 |
3000 |
3500 |
|
kg |
LOAD |
227 |
454 |
680 |
907 |
1134 |
1361 |
1588 |
|
|
Line Speed |
ft/min |
23.7 |
23.1 |
20.6 |
16.7 |
13.4 |
10.7 |
8.5 |
6.79 |
|
m/min |
6.7 |
5.85 |
5.3 |
4.3 |
3.45 |
2.75 |
2.2 |
1.75 |
|
|
Motor |
Amps |
26 |
35 |
70 |
98 |
107 |
129 |
138 |
169 |
|
Layers of cable |
1 |
2 |
3 |
4 |
5 |
|
|
Rated line |
lb |
3500 |
2817 |
2573 |
2363 |
1975 |
|
kg |
1588 |
1278 |
1167 |
1072 |
896 |
|
|
Cumulative cable |
ft |
7.9 |
16.7 |
26.2 |
36.7 |
49.2 |
|
m |
35 |
5.1 |
8 |
11.2 |
15 |
|
Notice:
1) Do not use winch as a hoist, do not use for transportaion of people.
2) Don't operate and spool under full load over one minute continuously.
3) While motor is overtheating, please stop for a while to cool down.
