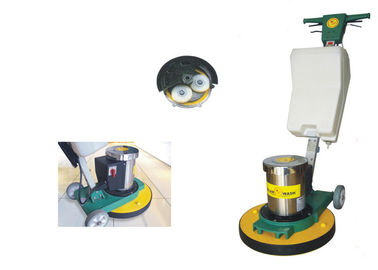

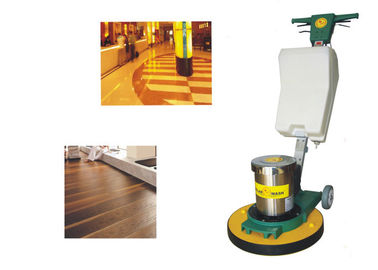

Single Disc Swing Arm Floor Polishing Machine 150RPM with Planetary Gear Box

Single Disc Swing Arm Floor Polishing Machine 150RPM with Planetary Gear Box

Single Disc Swing Arm Floor Polishing Machine 150RPM with Planetary Gear Box
Product Details:
Contact Now
Detailed Product Description
High Light:

floor scrubber polisher

,

floor wax machine



Single Disc Swing Arm Floor Polishing Machine 150RPM with Planetary Gear Box





Quick Detail:



Name

Floor Cleaner

Application

Can do cleaning, washing, waxing, grinding & polishing of all kinds of surfaces.

Power

1200 W

Working Width

450 mm (18”)

Working Speed

150 RPM

Certificate

CE





Description:



> Power: 1200 W

> Volt: 110/220 V, 50/60 HZ

> Working Width: 450 mm (18”)

> Working Speed: 150 RPM

> Gross Weight: 32.0 KG

> Standard accessories: 18” Pad Holder, 18” Hard Brush, 18” Soft Brush & Water Tank.

> Planetary Gear Box

> Durable Brush

> Durable Motor

> 90o Adjustable Handle





How to assemble the machine? Or how to use machine?



This Floor Machine is composed by handle with water tank unit,motor unit,Brush Deck and pad holder or brush.

Assembly the handle unit onto the 3 leg Chassis by using 3 pieces of M8 X 70 hexagon bolt and 6 pieces of 8mm Washer.

Push back the handle until it is level with the ground. Unscrew the Motor Plug Covers by a screwdriver and open it. Fix the Angle Plug onto the socket and screw back the Plug Covers.

Put back all the parts to the original states before disassembly.

Use 8 pieces ST4.2 X 25(M6 X50) Screw and 8 pieces 5mm(6mm) Washer to assembly the Brush Deck on to the Chassis and link up the water hose between the water tank and the Chassis.

After the Brush Deck is installed, assemble the pad holder by anti-clockwise turn and dissemble it by clockwise turn.

Assemble the other holders same way as the installation of the pad holder.

After all the assembly procedures are completed, press on the handle switch to lift the handle until it is 90o to the Chassis.

Plug the electric cord into the outlet, press the breaker, tighten the switch that both left and right on the lever, starting motor and running the machine.

Loosen the Switch Lever Handle, the machine will stop immediately.

Tip the machine onto the wheels and pull lever to move the machine.





Applications:



This floor machine is designed by manual controlling. It is outstanding for its four chief functions-floor cleaning, carpet washing, polishing and grinding, which can meet with customers'requirements for these different functions. Suited for the commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices, and rental companies. It's designed accurately and it works by gears box equipped with two capacitors which make it safer and more powerful.



Note:

This machine is not suitable for cleaning surfaces which release toxic liquids and dusty environments, and not use the machine on steps.

This machine is intended exclusively for use in building interiors, not approved for use on roads.

Floor coverings must be tested for suitability for this cleaning process before use.

Pay attention to the area compression of point-elastic floors,  e.g. in gymnasiums.





Specifications



Model

SL-450S

Power

1200 W

Volt

110/220 V, 50/60 HZ

Working Width

450 mm (18”)

Working Speed

150 RPM

Gross Weight

32.0 kg

Standard Accessories

18” Pad Holder, 18” Hard Brush, 18” Soft Brush & Water Tank.





Why to choose Solar Wash Floor Machine?



1. Kill Switch that prevents accidental start-ups.
2. Dual “on - off” power levers.
3. Engineered for quiet and smooth operation
4. Commercial grade heavy-duty equipment.
5. Swing arm machine
6. Easy detachable full length handle.
7. Universal height adjustment.
8. With its durable planetary gear-box is perfect for demanding usage.





Communication with customers



A: Hello, Can you help me? What’s the different from SL-450S and SL-18H?

B: Dear, We are the main floor machine factory in china. SL-450S is a low speed (150 RPM) machine for normal cleaning, and also can do reconditioning with Extra Weight. SL-18H is a high speed (300 RPM) one for polishing.



A: Well, we never had a problem with them before but we bought some Floor Machines from other suppliers, how is that for quality control in your factory?

B: We have been approved by the ISO9001 Quality System in 2001, this has enables it to be an enterprise with internationally recognized system quality inspection.

A: That’s good to hear.



A: How long time for 100 pcs of SL-450S Floor Machine?

B: 30~45 Days is okay with standard package.



A: Which shipping partner is available to EURO?

B: DHL, UPS, TNT, FEDEX, EMS are okay. Which shipping cost is cheaper and speed is good, I will suggestion to you. 3-4 days can arrive EURO.



A: How long is your quality guarantee period?

B: Within 6 months form the dates of purchase if our sweeper are found faulty not due to human factors and verified by our company’s or our authorized distributor’s technician, the machine will be repaired and the faulty parts will be replaced at no charge.

A: Great, TKS. Do it.
