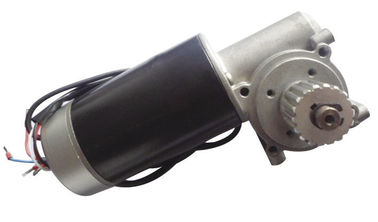

Door opener motor for Automatic door Motor 24VDC 65W phosphor bronze gear

Door opener motor for Automatic door Motor 24VDC 65W phosphor bronze gear

  • Door opener motor for Automatic door Motor 24VDC 65W phosphor bronze gear
Door opener motor for Automatic door Motor 24VDC 65W phosphor bronze gear
Product Details:
Place of Origin: Jiangxi, China
Brand Name: Ccoem
Certification: CE/CCC
Model Number: YX-4006
Payment & Shipping Terms:
Minimum Order Quantity: 300pcs
Price: To be discussed
Packaging Details: Standard export carton or pallet,10pcs/carton, 25ctns/pallet
Delivery Time: 25-30days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 50,000pcs/month
Contact Now
Detailed Product Description
Size: 42mm Shaft Dia: 5mm
Rated Torque: 1.6kg.cm Step Motor Rated Current: 0.95A
High Light:

Smart Automatic Door

,

automatic door system


Quick Detail:

Automation equipment motor for Induction Motor, phosphor bronze gear ,24VDC 65W

Description:

1.10 years experience
2.ISO900, CE Certificated
2.Great flexibility & OEM capacity
4.Silent working
5.Comtetitive Price


Permanent Magnet Brushed DC motor, worm gear box
Gear material: Aluminum Diecasting Gearbox
Motor housing: D63.5mm, Black coating or Zincification available
Rolled Steel Housing Construction
Various Output Shaft design
Metal or Plastic pulley available
Permanent magnet motor
Worm gearbox
Permanent lubrication by grease
Working temperature range -25C to + 60C
Encoder controlled

Specifications:



Code

Voltage

Power

No load

On load

Stall torque

Protection class

Weight

Encoder Honeywell

Speed

Current

Speed

Current

V

W

RPM

A

RPM

A

Nm

IP

KG

4006

24V

50-100

220

0.7

210

1.7

17

IP44

2

Yes




Applications:

Permanent Magnet Brushed DC 24VDC, 50W DC motor, and is encoder controller. It offers strong permissible torque and instantaneous reversing characteristics with low noise, long life and reliable performance. It features permanent magnet motor utilizing neodymium iron boron alloy, which is permanently mounted on the stator. As a result, the motor dispels its heat more evenly, preventing overhearing and increasing efficiency.
The motor also features a small commuter, resulting in lower wear on the motor’s brushes. As a result, the brushes on the motor, if used for automatic doors, can last for over 10 years, without need for replacement.
The motor also can used a hardened alloy steel worm with phosphor bronze gear, which provides much larger torque than traditional plastic gears.
