| Place of Origin: | China |
| Brand Name: | DB |
| Certification: | CE & SGS |
| Model Number: | According to profile |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD20000-35000/set |
| Packaging Details: | 1.nude package and fixed by steel rope. 2.A full set of 40GP container. |
| Delivery Time: | 35days |
| Payment Terms: | TT/LC |
| Supply Ability: | 5sets/month |
| After-sales Service Provided: | Field Maintenance And Repair Service | Condition: | New |
|---|---|---|---|
| Dimension(l*w*h): | 6500*1300*1100 | Warranty: | 12 Months |
| Color: | Client's Request | Raw Material: | Galvanized Sheet |
| Cutting Blade Material: | Cr 12 Mov | ||
| High Light: | gutter roll forming machine,sheet metal roll forming machines |
||

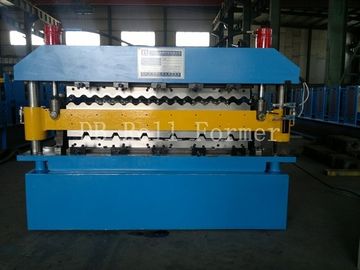

Double Layer Roll Forming With Machine Colored Steel Sheet And Galvanized Steel Sheet
Application:
Double Layer Roll Forming Machine can separate produce corrugated roof and IBR roof in one line or similar two profiles.
The products are widely used in building
| steel-structure warehouse | plants | supermarkets | shopping malls |
| trade markets | stadiums | holiday villages | sanatoriums |
| hotels | villas | residences | different kinds of greenhouses |
Technical Parameters:
Material Spec: Colored Steel Sheet; Galvanized Steel Sheet
1)Thickness of Coil Sheet: 0.3-0.8mm
2)Main Motor Power: 5.5KW
3)Forming Speed: 15-18M/MIN
4)Hydraulic Station Power: 5.5 KW
5)Quantity of Stands: 17 Stands
6)Hydraulic Pressure: 10-12Mpa
7)Controlling System: PLC
8)Index Error of Length: 10M ± 2mm
9)Total Weight: About 80000KGS
10)Voltage: 380V 3 Phase 60Hz or At Buyers Requirement
Main component:
|
NO. |
Product |
QTY |
|
1 |
5T manual uncoiler |
1 |
|
2 |
Main Roll forming(cutting, PLC computer, Hydraulic system) |
1 |
|
3 |
Output shelf(Freely) |
2 |
Advantage:
available for two profiles roof panel shared one frame, save the cost.
double forming machine
Reference:
Contact Person: Mrs. Du
Tel: 1598930822
Fax: 86-755-3697709
