5.5KW Galvanized Steel Sheet Double Layer Roll Forming Machine for Corrugated Roof

Double Layer Roll Forming Machine for Corrugated Roof and IBR Roof in One Line

Application:

Double Layer Roll Forming Machine can separate produce corrugated roof and IBR roof in one line or similar two profiles.

The products are widely used in building the steel-structure large-scale warehouse, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses.

Technical Parameters:

a)  Material Spec: Colored Steel Sheet; Galvanized Steel Sheet
b)  Thickness of Coil Sheet: 0.3-0.8mm
c)  Main Motor Power: 5.5KW
d)  Forming Speed: 15-18M/MIN
e)  Hydraulic Station Power: 5.5 KW
f )  Quantity of Stands: 17 Stands
g)  Hydraulic Pressure: 10-12Mpa
h)  Controlling System: PLC
i)   Index Error of Length: 10M ± 2mm
j)   Total Weight: About 80000KGS
k)  Voltage: 380V 3 Phase 60Hz or At Buyers Requirement

Consists:

Automatically cut to length, PLC control, alternating Current Frequency Conversion.

This line consists of 5 Ton Mechanical uncoiler, guiding and feeding device, roll forming machine,

run out table, PLC controller, hydraulic post-cutting equipment, electrical control system, hydraulic system, etc.

Advantage:

available for two profiles roof panel shared one frame, save the cost.
double forming machine
1) Used to produce different roof panels and wall panels
2) Produced panels have such advantages as below:
    a) Fine profile
    b) Attractive color
    c) Agile connecting
    d) Slightly curved
3) dual-level roll forming machine
4) We can design and manufacture different type of it to hit your particular profiles

Drawing for refer:

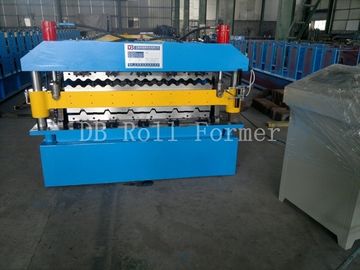

Main machine picture
