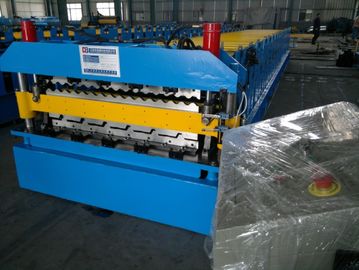

380V Double Layer Roll Forming Machine with Alternating Current Frequency Conversion

380V Double Layer Roll Forming Machine with Alternating Current Frequency Conversion

  • 380V Double Layer Roll Forming Machine with Alternating Current Frequency Conversion
  • 380V Double Layer Roll Forming Machine with Alternating Current Frequency Conversion
380V Double Layer Roll Forming Machine with Alternating Current Frequency Conversion
Product Details:
Place of Origin: China
Brand Name: DB
Certification: CE & SGS
Model Number: According to profile
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD20000-35000/set
Packaging Details: 1. nude package and fixed by steel rope. 2. A full set of 40GP container.
Delivery Time: 35days
Payment Terms: TT/LC
Supply Ability: 5sets/month
Contact Now
Detailed Product Description
Voltage: 380V/50HZ3Phase (as Customer's Request) Certification: CE/ISO
Tile Type: Double Layer Roll Forming Machine Use: Roof/wall
Condition: New Warranty: 12 Months
High Light:

gutter roll forming machine

,

portable roll forming machines


Double Layer Roll Forming Machine with Alternating Current Frequency Conversion

Application:
Double Layer Roll Forming Machine can separate produce corrugated roof and IBR roof in one line or similar two profiles.
The products are widely used in building the steel-structure large-scale warehouse, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses.



Technical specification:





Material Spec: Colored Steel Sheet; Galvanized Steel Sheet
Thickness of Coil Sheet: 0.3-0.8mm
Main Motor Power: 5.5KW
Forming Speed: 15-18M/MIN
Hydraulic Station Power: 5.5 KW
Quantity of Stands: 17 Stands
Hydraulic Pressure: 10-12Mpa
Controlling System: PLC
Index Error of Length: 10M ± 2mm
Total Weight: About 80000KGS
Voltage: 380V 3 Phase 60Hz or At Buyers Requirement


Consists:
This roll forming machine can separately produce corrugated roof and IBR roof in one line.
This line consists of 5 Ton Mechanical uncoiler, guiding and feeding device, DUAL LEVEL roll former, run out table, PLC controller, hydraulic post-cutting equipment, electrical control system, hydraulic system, etc.

Advantage:

available for two profiles roof panel shared one frame, save the cost.
double forming machine
1) Used to produce different roof panels and wall panels
2) Produced panels have such advantages as below:
a) Fine profile
b) Attractive color
c) Agile connecting
d) Slightly curved
3) dual-level roll forming machine
4) We can design and manufacture different type of it to hit your particular profiles



380V Double Layer Roll Forming Machine with Alternating Current Frequency Conversion 0
