|Place of Origin:||China|
|Certification:||SGS/CITIC Inspection Report|
|Model Number:||Planetary Gear Speed Reducer|
|Minimum Order Quantity:||1pcs|
|Price:||Please Send Us Inquiry|
|Packaging Details:||Packed in carton firstly,and then reinforced with wooden case for outer packing|
|Delivery Time:||45 working days after received your payment|
|Payment Terms:||T/T or western Union|
|Supply Ability:||3,0pcs per month|
|Product Name:||Low Speed Heavy Gear Reduction Box||Application:||Mining Project|
|Input Speed:||1000,1200,1500,1800rpm||Materials:||Cast Steel|
|Output Speed:||50~254rpm||Output Torque:||6~65KNm|
|Housing Case:||Square||Heat Treatment::||Carburising/quenching/gear|
heavy duty gearbox

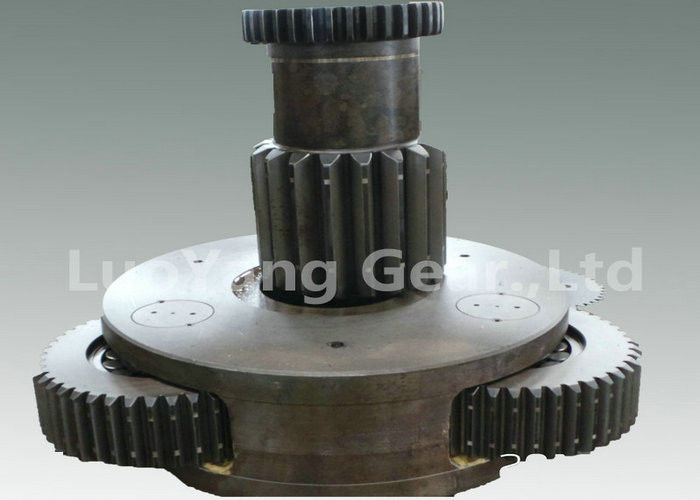

Planetary Gear Speed Reducer , Low Speed Heavy Gear Reduction Box features:
1, The involute planetary gear transmission with planetary gear reducer, P series, the rational use of internal, external meshing, power split. It has the characteristics of light weight, small volume, wide range of transmission ratio, high efficiency, stable operation, low noise, strong adaptability.
2, the box is made of ductile cast iron, greatly improve the rigidity and the shock of box.
3, input methods: concentric shaft input, helical gear, bevel gear, helical gear, bevel gear input.
4, the output modes: inner spline type, hollow shaft shrink disk, external spline type, solid shaft key.
5, installation: installed horizontally, vertically mounted, torque arm installation.
6, the use of modular design, can be combined according to customer requirements.
7, and R series, K series combination can get bigger ratio.
Planetary Gear Speed Reducer , Low Speed Heavy Gear Reduction Box Applicable conditions:
1, Reducer gear circumferential speed of not more than 10 m / s..
2, The input shaft speed of not more than 1500 rpm.
3, Reducer working environment temperature -40 °C -+45 °C.
4, Reducer can be positive, reverse two to run for.
Gear Box's Usage Field
Metallurgy,Mine,Machine,Energy,Transportation,Water Conserbancy,Tobacco,Pharmacy,Printing Package,Chemical industry
Gear Box's Usage
Agitator,Blast fan,Hoister,Compressor,Petroleum industry,Air Compressor,Crusher,Plastic extruder,Conveyer,Textile industry
Hardened reducer is widely used in metallurgy, mining, lifting, transportation, cement, construction, chemical, textile, printing and dyeing.
Field hardened reducer, pharmaceutical etc. Hardened reducer, a power transmission mechanism, the gear speed converter, motor rotating number reduction to rotation number, and obtain larger torque device. Hardened reducer is a relatively sophisticated machinery, use it for the purpose of increasing the torque, reduce speed, suitable for high speed shaft speed of not more than 1500rpm, gear circumferential speed of not more than 20m/s, the enviromental working environment temperature is -40c~45c.
Hardened reducer gear (Planetary Gear Speed Reducer , Low Speed Heavy Gear Reduction Box) with high strength low carbon alloy steel after carburizing and quenching into high gear, tooth surface hardness, CNC grinding technology, high precisionm, good contact, high transmission efficiency, stable operation, low noise, small volume, light weight, long service life, high bearing capacity; easy to remove inspection, easy to installation.
1, center distance, center height, drive number priority than using priority number system.
2, the gear parameters, structure optimization design by computer.
3, gear made of high strength low carbon alloy steel after carburizing and quenching gear grinding. Tooth surface hardness is high, the precision of gear up to international standard class6.
4, high transmission efficiency, low noise.
