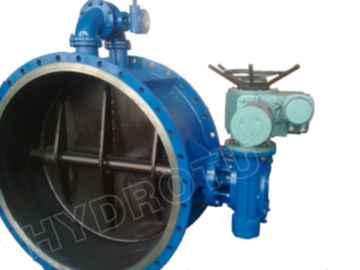

Gear Operated Flanged Butterfly Valve 1000mm for Hydropower

Gear Operated Flanged Butterfly Valve 1000mm for Hydropower

  • Gear Operated Flanged Butterfly Valve 1000mm for Hydropower
  • Gear Operated Flanged Butterfly Valve 1000mm for Hydropower
  • Gear Operated Flanged Butterfly Valve 1000mm for Hydropower
  • Gear Operated Flanged Butterfly Valve 1000mm for Hydropower
  • Gear Operated Flanged Butterfly Valve 1000mm for Hydropower
Gear Operated Flanged Butterfly Valve 1000mm for Hydropower
Product Details:
Place of Origin: Zhejiang, China
Brand Name: Hydrotu
Certification: CE
Model Number: Electric Butterfly valve
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case( Export Standard Package)
Delivery Time: Negotiable
Payment Terms: L/C,T/T
Contact Now
Detailed Product Description
Material: Carbon Steel Butterfly Valve Dimensions: 100 – 5000 Mm
Nominal Pressure: 0.25 - 2.5 Mpa Operatation Type: Worm Gear, Electric Motor
Media: Water,oil
High Light:

manual butterfly valve

,

motorized butterfly valve

Gear Operated Flanged Butterfly Valve 1000mm



Specifications:



A butterfly valve is a valve which can be used for through or cut off flow. The closing mechanism takes the form of a disk. Operation is similar to that of a ball valve, which allows for quick shut off. Butterfly valves are generally favored because they are lower in cost to other valve designs as well as being lighter in weight, meaning less support is required. The disc is positioned in the center of the pipe, passing through the disc is a rod connected to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, therefore a pressure drop is always induced in the flow, regardless of valve position.

There are different kinds of butterfly valves, each adapted for different pressures and different usage.



This type of butterfly valve operated by the electric motor, and also can by manual, It has a motor and wormgear box on the head of valve. The wormgear  are planetary gear operated. This type of gearing allows the use of a relatively small handwheel and operating force to operate a fairly large valve.

   Electric/Manual control Butterfly Valve


      Nominal Diameter: 50 – 3000 mm

  Nominal Pressure: 0.25 - 2.5 Mpa



Competitive Advantage:



HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.


With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.


HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.



Gear Operated Flanged Butterfly Valve 1000mm for Hydropower 0Gear Operated Flanged Butterfly Valve 1000mm for Hydropower 1
