Place of Origin: | Guangdong,China (Mainland) |
Brand Name: | Candle |
Certification: | CE |
Model Number: | KDL-HBL-240W-A |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Get Latest Price |
Packaging Details: | 1pcs/Carton |
Delivery Time: | 3-5 working days for samples |
Payment Terms: | T/T |
Supply Ability: | 80,000~100,000pcs/month |
High Light: | led high bay lamp,led high bay lighting fixtures |
---|

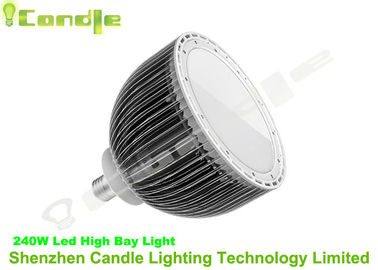

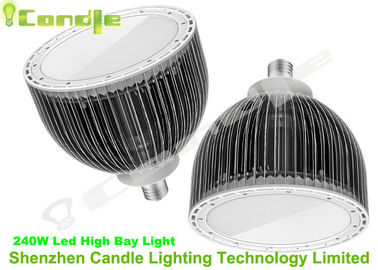

Warm White Cree E39 High Bay Led Garden Lights 240w , 50000hour Working Lifetime
Quick Detail:
1. Light color: warm white
2. Total harmonic distortion: ≤ 10%
3. Led initial luminous flux: > 20400LM
4. Working lifetime: 50000Hour
5. Base type: E39
6. Brand Name: 240w-Fin Shape-Led High Bay Light
Specifications:
Product number | KDL-HBL-240W-A | ||
Power | 240W | ||
Rated output current | 6.7A | ||
Rated output voltage | DC30-36V | ||
Color temperature | 2700K-7000K | ||
Operating junction temperature | ≤75℃ | ||
Size | ∮350*H388 | ||
Power internal / external
|
Internal | ||
Led lighting level(white) | >85LM/W | ||
Led chip | Cree | ||
Input voltage | AC90V~305V | ||
Frequency range | 50Hz~60Hz | ||
Total harmonic distortion | ≤ 10% | ||
Power factor | >0.95 | ||
Power efficiency | >93 % | ||
Working voltage | DC33~40V | ||
Led max consumption | <240W | ||
Led luminous efficiency | >85Lm /W | ||
Led initial flux | > 20400LM | ||
Lamp’s efficiency | >93% | ||
Averge illumination(120w test result) | 5 m | >138 Lux | |
Illuminance area(120°) | 5 m | Diameter of circular area 15.0M | |
Illuminance uniformity | >0.6 | ||
Color rendering index | Ra>70 | ||
Light distribution | Symmetric / round spot | ||
Light design | LED+PC shade | ||
Working temperature | -30℃ ~ +60℃ | ||
Storage temperature | -40℃ ~ +70℃(25℃best) | ||
Net weight | 3.27Kg | ||
Working life-span | 50000H | ||
Base (power built) | E39/E409(With safety ropes) or hook | ||
Connect wire(external power supply) | Brown | L FireWire, | |
Blue | N zero line | ||
Yellow/Green | G Ground wire | ||
The color of the lamp shell | Black, silver white optional | ||
1070 aluminum | |||
thermal conductivity: 226W/m.k |
